Lifts: Electro-hydraulic scissor lift
Art. 1537
Electro-hydraulic scissor lift for tyre shop
» Mechanical safety device
» Extremely silent power pack
» Non return valve provides safety against hydraulic failure
» Acoustic signal during lifting-descent phase
» Pins with self-lubricating bushings

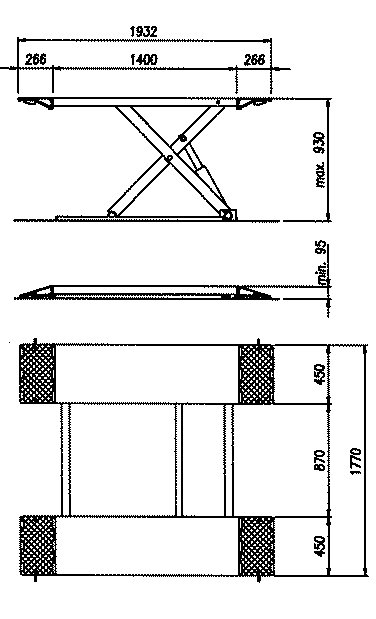

TECHNICAL DRAW
| TECHNICAL DATES |
1537 |
| Capacity |
2,5 t |
| Lifting height |
930 mm |
| Operating temperature |
-10 +40 °C |
| Lifting |
12 sec |
| Descent |
35 sec |
| Weight |
500 Kg |
The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
TECHNICAL DRAW
