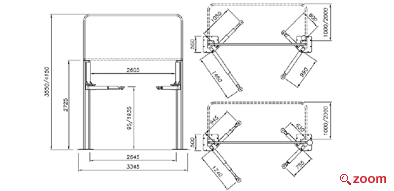

2 post lifts: 1517 – 1517K

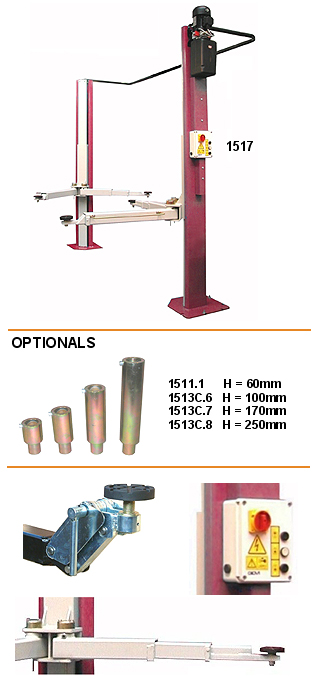

Art. 1517
Asymmetric electro-hydraulic 2 post lift clear floor

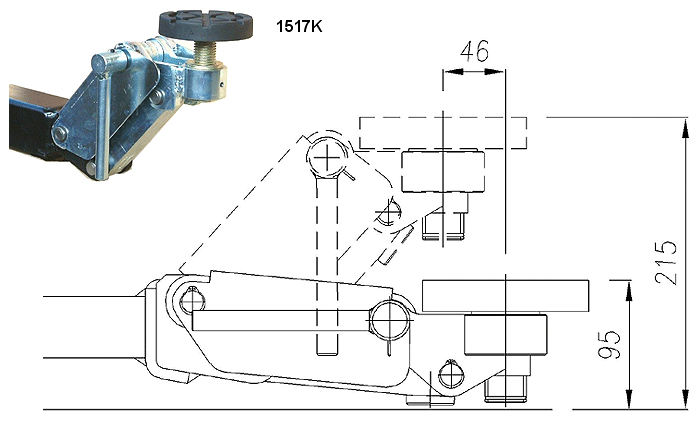

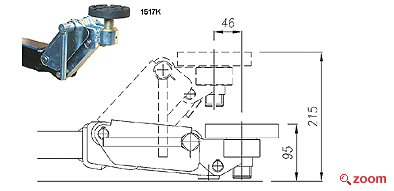

Art. 1517K
Asymmetric electro-hydraulic 2 post lift clear floor and arms equipped with 6 positions adjustable pad



» Electromechanical locking device in case of rope breaking » Automatic arm locking device » Interchangeable screw pads » Feet protection guards » Overload safety-device » Descent control valve » Safety-valve in case of sudden loss of pressure » "Dead man" controls 24V » Electrical controlled fall safety » Safety device in case of rope failure



OPTIONALS
1511.1 – 1513C.6 - 1513C.7 – 1513C.8
Kit n° 4 screw pads extension 1511.1 H = 60mm
1513C.6 H = 100mm
1513C.7 H = 170mm
1513C.8 H = 250mm

1517.1
Kit floor connections

1517.2
Kit superior safety vehicle
