Art. 1526
Electro-hydraulic 4 post-lift with recess for wheel alignment.
» Safety device in case of rope breaking
» Overload safety-device
» Descent control valve
» Safety-valve in case of sudden loss of pressure
» "Dead man" controls 24V
» Electrical controlled fall safety

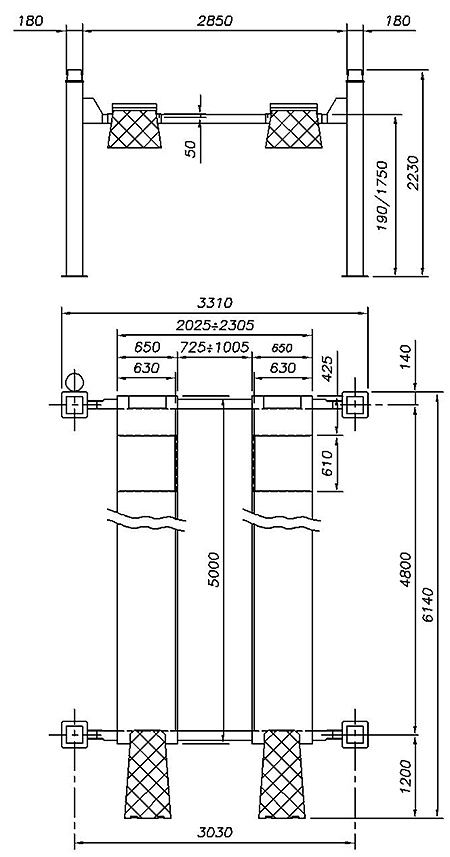

TECHNICAL DRAW
| TECHNICAL DATES |
1526 |
| Capacity |
t 4 |
| Three-phase motor |
kw 2.2 |
| Voltage |
V/Hz 230-400/50 |
| Lifting |
sec 50 |
| Descent |
sec 45 |
| Weight |
kg 1310 |
The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
TECHNICAL DRAW
