Art. 1529
Electro-mechanical with crosspieces.
» Sequential start of posts allows to minimize starting current absorption
» Electronic synchronization of tracks independently from the load distribution on the tracks
» Operation lockout with maintenance request and lockout release with variable secret code
» Twin safety system: mechanical and electronic limit switches
» Messages and graphics displayed on a big LCD
» Real time nut wear monitoring through inspection slot on rear panel of each post
» Automatic safety sensors stop motion in case the lift hits an obstacle left under the fork
» Safety nut has same capacity as bearing nut
» Mushroom-head-safety-push-button with mechanical realease function
» Trapezoidal type, irreversible main spindles driven by oil bath lubricated gears, without additional coupling gears or couplers

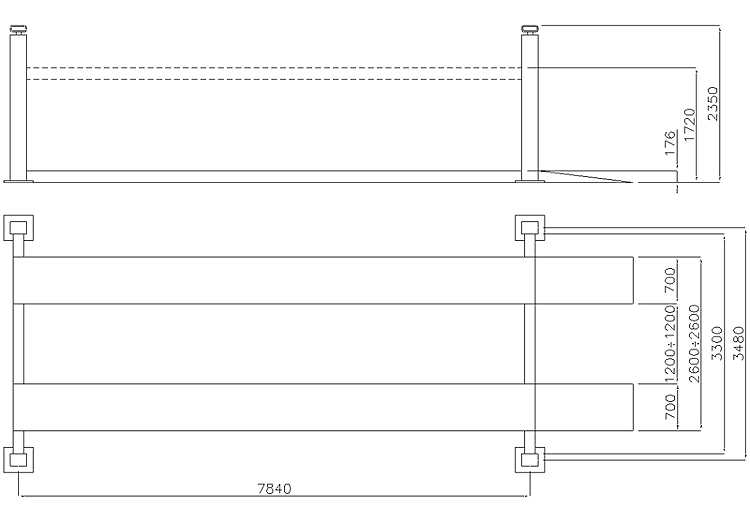

TECHNICAL DRAW
