Hydraulic press with moveable piston: 1653S - 1654S - 1656S - 1658S

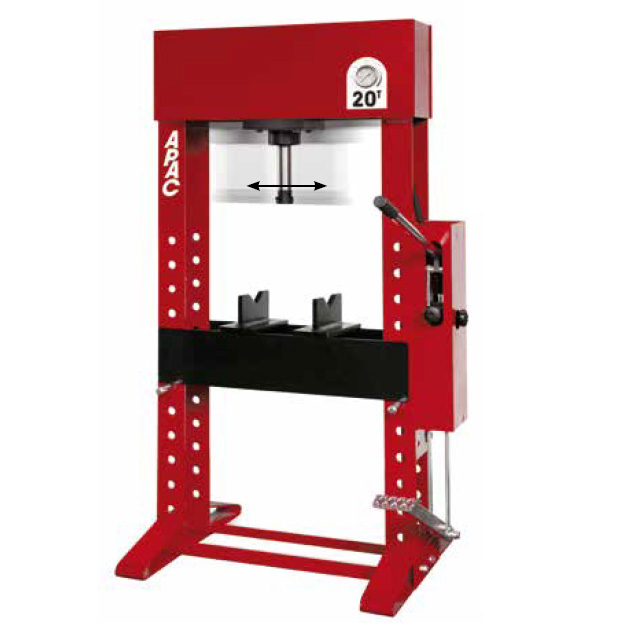

1653S (15t) - 1654S (20t)
Hydraulic press with moveable piston

1656S (30t) - 1658S (50t)
Hydraulic press with moveable piston and lifting winch

• Double-speed hand pump
• Overload safety-valve
• Automatic return of the ram
• Quick approach pneumatic device
• Chromium plated rod
• Pressure gauge
• V-blocks

OPTIONAL

• Press plate
  Mod. 1653B > U2350388
  Mod. 1654B > U2350388
  Mod. 1656B > U2350631
  Mod. 1658B > U2350632
• Plugs Ø 29 24 18 14 10 5
  Mod. 1653B > V1650B.2
  Mod. 1654B > V1653B.2
  Mod. 1656B > V1658B.2
  Mod. 1658B > V1655.2
