OPTIONAL
| Technical data | 1541B - 1541BA |
|---|---|
| Capacity | 1.600 kg |
| Lifting height | 290 mm |
| Min extension (arms retracted) | 935 mm |
| Estensione max. (bracci aper ti) | 1.625 mm |
| Gauge | vedere dettagli schemi - please refer to carriage diagrams |
| Weight | 105 kg |
The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

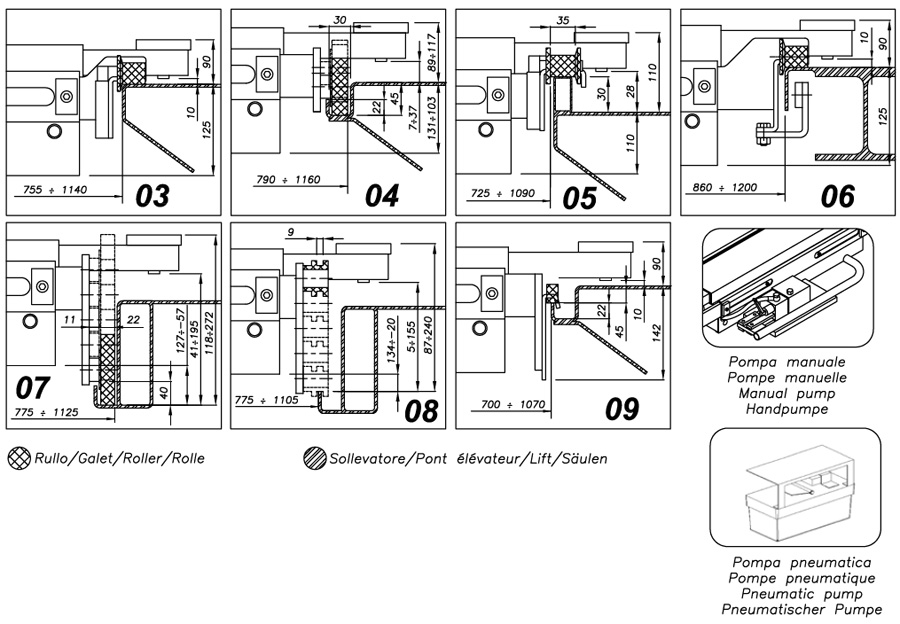

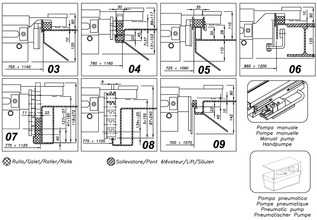

TECHNICAL DRAW: Available versions

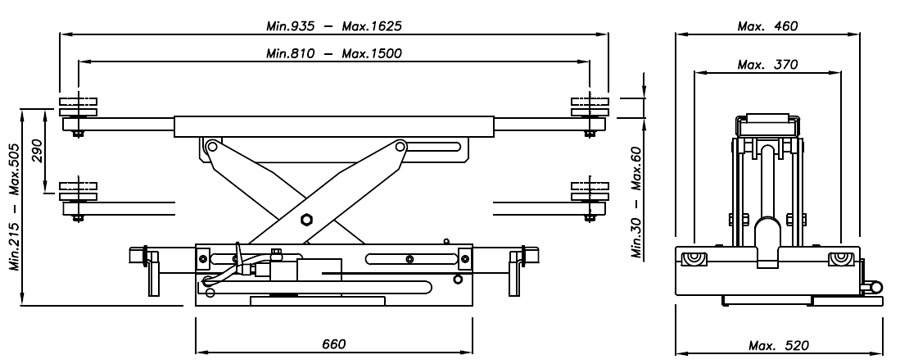

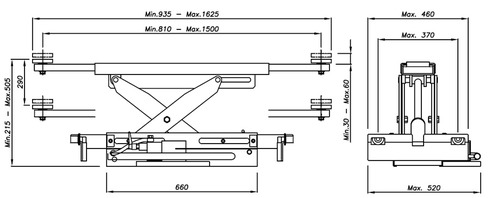

TECHNICAL DRAW: 1541B - 1541BA
1541B - 1541BA
