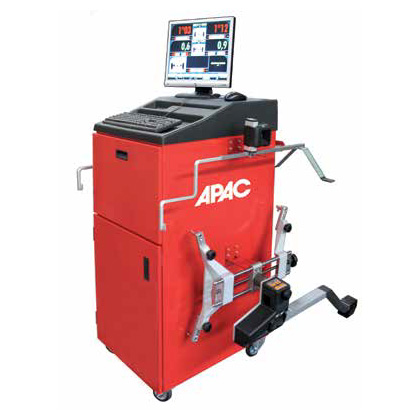

Wheel aligner: Wheel aligner with bluetooth-sensors 1688BT - 1688BT4


  • Operating system based on Windows XP
  • 17”-LCD-Display
  • 4 ccd sensors + 2 signal amplifiers (1688BT)
  • 2 sensors detect reduced weight and reduced dimensions, with integrated controls (1688BT)
  • 4 sensors detect reduced weight and reduced dimensions, with integrated controls (1688BT4)
  • Vehicle data bank; data can be entered manually and is periodically upgradable
  • Customer data bank allows to store an infinite number of mainenance jobs with search function that works either with customer name or vehicle number plate
  • 1688BT 2 sensors
  • 1688BT4 4 sensors
  • 1688BT 2 repeaters
  • 1688BT 2 4-point wheel clamps (10” a 26”)

OPTIONAL

  • U2360724 Radius plates (2 pcs.) + Radius plates ramps
  • U2360718 Sensor calibration bar
  • U2360603 Kit of (4) wheel clamps for commercial vehicles, 98mm
  • U2360725 Databank upgrading kit


Measurable angles REAR AXLE Tolleranza/Campo di Misura Campo Totale di Misura (su sterzata max)
total toe ±2’ ±4° ±22°
partial toe ±2’ ±4° ±22°
Set-back ±3’ ±4° ±22°
camber ±3’ ±6° ±22°
caster ±9’ ±18°
king pin ±9’ ±18°
included angle - -
inner steering - -
outer steering - -
20° steering symmetry - -

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.



Technical data 1688BT - 1688BT4
Power supply of control panel 1ph 230V 50/60 Hz
Power input 300 W
Power supply of sensors 1 battery pack 7.2V ≠ 1.4 Ah
Dimension 1.120 x 1.610 x 840 mm
Weight ~170 Kg.

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
