Hose Reels Equipment: Air/water open

1732.W, 1732.WBN1732.911, 1732.916, 1732.910, 1732.915, 1732.56A, 1732.56B1732.420, 1732.425, 1732.421, 1732.426, 1732.4301732.600, 1732.615, 1732.620, 1732.625, 1732.660, 1732.670, 1732.675, 1732.6781732.XWN STAINLESS STEEL1732.896 STAINLESS STEEL

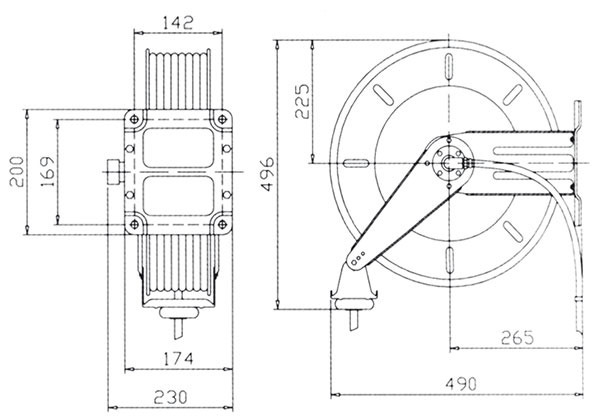

ART. ø mm IN OUT  Bar °C Kg.

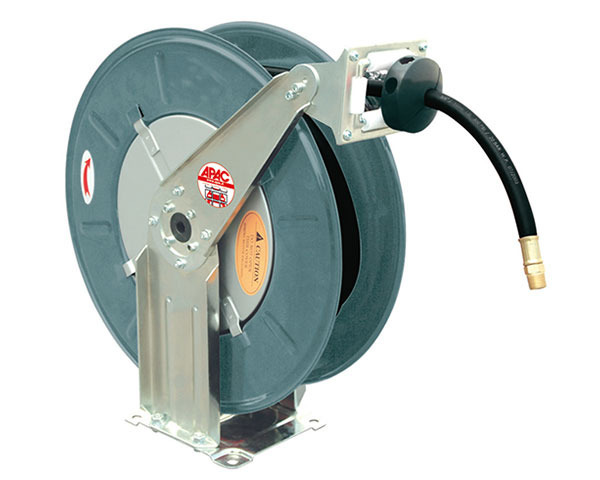

1732.W 1/2” 1/2”f 1/2”m 15 m 20 100° 26
1732.WBN 3/8” 3/8”f 3/8”m 15 m 20 100° 22

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

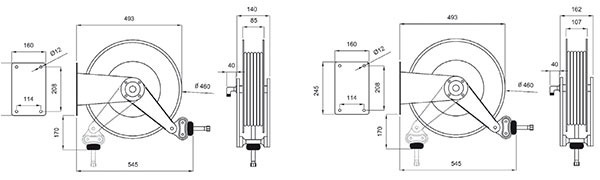

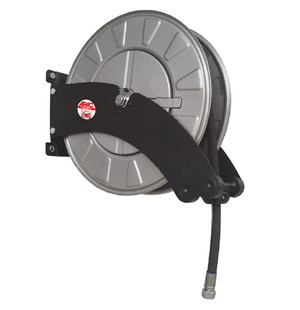

ART. ø mm IN OUT  Bar °C Kg.
1732.911 3/8” 1/2”m 3/8”f 10 m 200 150° 21,5
1732.916 3/8” 1/2”m 3/8”f 15 m 200 150° 24
1732.910 3/8” 1/2”m 3/8”f 10 m 60 60° 21,5
1732.915 3/8” 1/2”m 3/8”f 15 m 60 60° 24
1732.56A 5/16” 3/8”m 3/8”m 20 m 250 110° 30
1732.56B 5/16” 3/8”m 3/8”m 20 m 200 150° 30

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

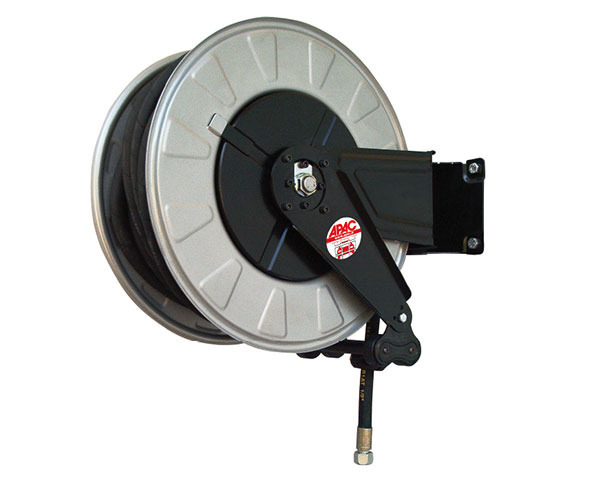

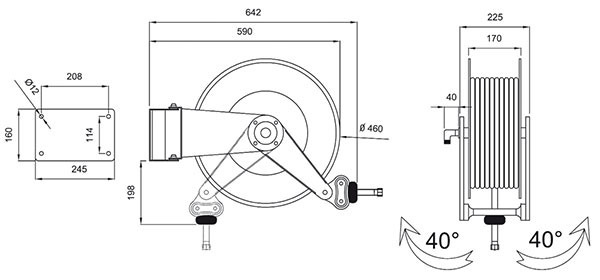

ART. ø mm IN OUT  Bar °C Kg.
1732.420 3/8” 1/2”m 3/8”f 20 m 60 60° 30
1732.425 3/8” 1/2”m 3/8”f 25 m 60 60° 36,5
1732.421 3/8” 1/2”m 3/8”f 20 m 200 200 150° 30
1732.426 3/8” 1/2”m 3/8”f 25 m 200 150° 36,5
1732.430 3/8” 1/2”m 3/8”f 30 m 200 150° 43,5

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

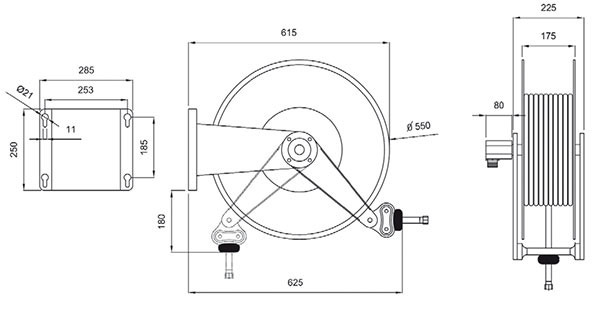

ART. ø mm IN OUT  Bar °C Kg.

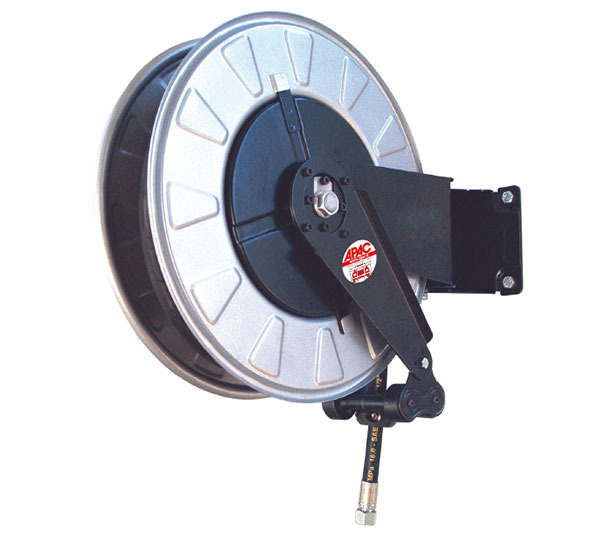

1732.600 - 3/4”m 3/4”m 25 m 20 40° 21,5
1732.615 3/4” 3/4”m 3/4”f 15 m 20 40° 32,5
1732.620 3/4” 3/4”m 3/4”f 20 m 20 40° 38,5
1732.625 3/4” 3/4”m 3/4”f 25 m 20 40° 45
1732.660 - 1”m 1”m 18 m 20 40° 21,5
1732.670 1” 1”m 1”f 10 20 40° 32,5
1732.675 1” 1”m 1”f 15 20 40° 38,5
1732.678 1” 1”m 1”f 18 20 40° 45

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

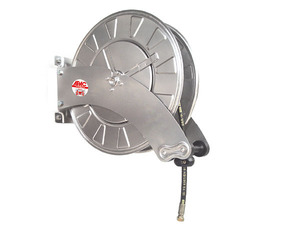

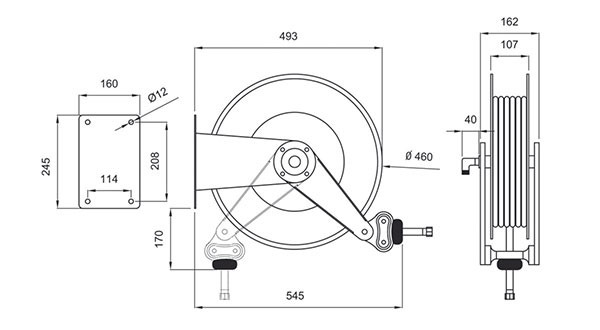

ART. ø mm IN OUT  Bar °C Kg.
1732.896 3/8” 1/2”m 3/8”f 15 m 250 150° 24

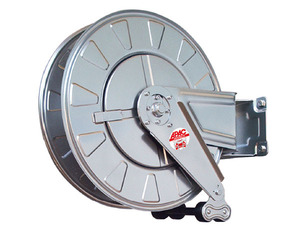

1732.861 3/8” 1/2”m 3/8”f 20 m 250 150° 30
1732.866 3/8” 1/2”m 3/8”f 25 m 250 150° 36,5
1732.870 3/8” 1/2”m 3/8”f 30 m 250 150° 43

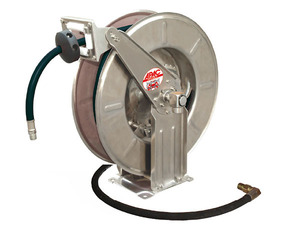

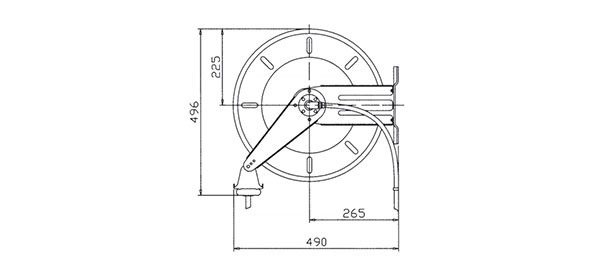

1732.XWN 3/8” 3/8”f 3/8”m 15 m 276 100° 20

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
