Mechanical: 1507


  • Possibility to install on surface floors with low anchorage strength
  • Two motors with a bigger width between posts (2.855 mm)
  • Equipped with three stage arms: perfect for lifting vans and vans with long wheelbase, at the same time they allow perfect lifting of cars
  • SUPER low arms, parallel to floor: thread pads with a min height of only 90mm. Recommended for sport cars and low vehicles
  • Automatic and permanent lubrication of the screw
  • Specially manufactured motors fitted with overheating protectionswitch
  • Operation: electro-mechanical
  • Shaft transmission between posts through oil-filled conic gear boxes requiring no maintenance
  • Steel high resistance rolled screw to provide long life
  • Bronze main nut with high resistance to wear for greater safety
  • Automatic locking & unlocking of arms during on floor
  • Dead man controls, 24V
  • Arms suitable for quick drop-in extensions
  • Two specially manufactured self-braking high performing motors to provide long life; fitted with protecting thermic sensor

OPTIONAL

  • Lifting pad extensions (4 pcs set)
  • Click system pads (1507.1)


Technical data 1507
Capacity 3.600 kg
Weight 900 kg
Lifting/descent 55 s
Lifting height 1880 mm
Motore 2 x 2,6 kW - 3 ph 230-400V/50 Hz

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

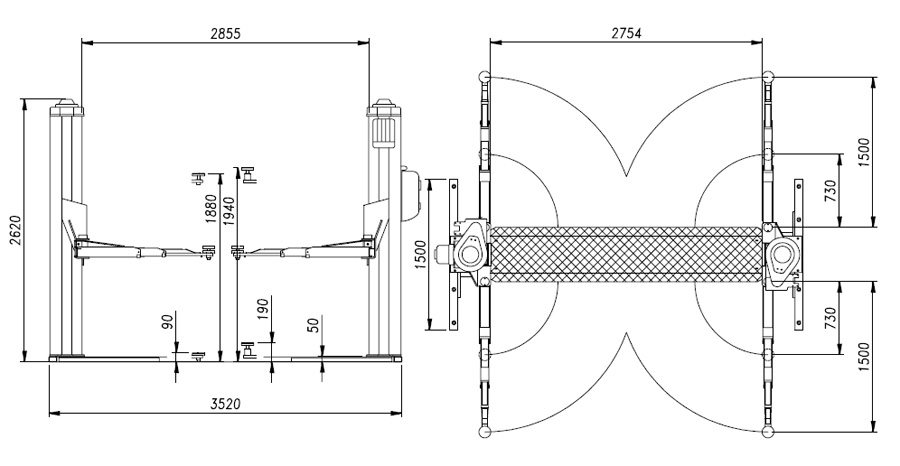

zoom TECHNICAL DRAW: 1507

1507

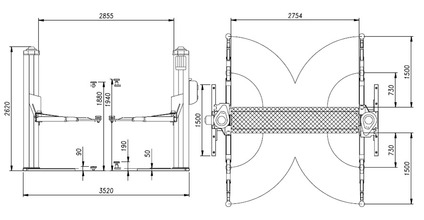

zoom TECHNICAL DRAW: 1507 - Click system pads 1507.1 * Optional

1507 - Click system pads 1507.1 * Optional
