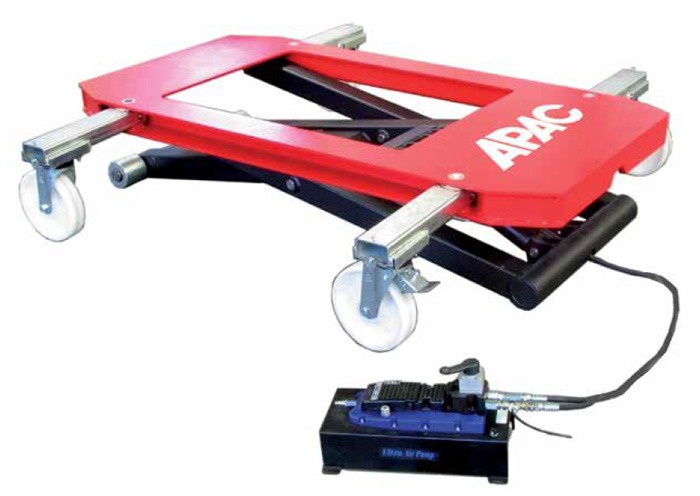

Electro-Hydraulic scissor lift for tyre and car body shops: 1537D

• “Dead man” controls, 24V
• Electrical safety devices
• Hydraulic and mechanical safety devices with pneumatic release
• Suitable for recessed installation in bodyshop spraybooths, grids and preparing areas
• Complete with pre-mounted hydraulic pipes enabling the installation of the control unit at max 5mt.
• Closing height from the ground can be adjusted according to the deepness of the grid
• Equipped with 4 rubber pads, h = 40mm
• ‘Buzzer’ on last portion of descent

Designed to be installed in body shop spraybooths Standard installation into grating

OPTIONAL

• Hose extensions 2 m
• Cable connected remote control (U2360757 -U2360758)
• Accessories needed for inground installation
• Single-phase motor
• Versions according to ATEX cl.2 standards

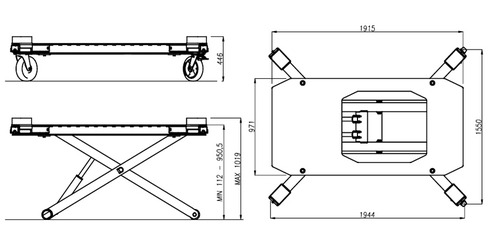

Please ask for detailed drawings to create basement foundations.
