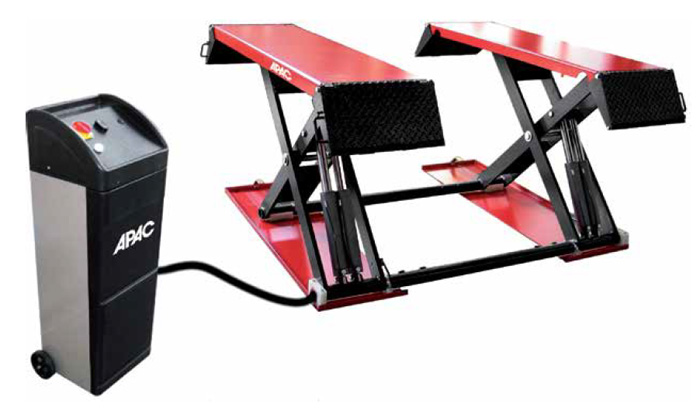

Electro-Hydraulic scissor lift for tyre and car body shops: 1537E


  • Easy to handle drive-on and drive-off ramps
  • Hydraulically synchronized platforms
  • Overload safety-valve
  • Safety-valve in case of sudden loss of pressure
  • Automatic lowering control
  • “Dead man” controls 24V
  • Set of 4 rubber pads
  • Safety control on last descent segment •
  • ‘Buzzer’ on last portion of descentDouble hydraulic system

OPTIONALS

  • (1537.4) Set of wheels
  • (1537.5) Auxiliary drive on-/drive-off ramps
  • Kit of embedded run-on and run-off skids (1537.9)


Technical data 1537E
Capacity 3.000 kg
Weight 500 kg
Lifting/descent 20/20 s
Lifting height 930 mm
Lunghezza 1.400 / 1.932 mm
Overall width 1.770 mm
Motore 1,1 kw - 400V/50 Hz

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

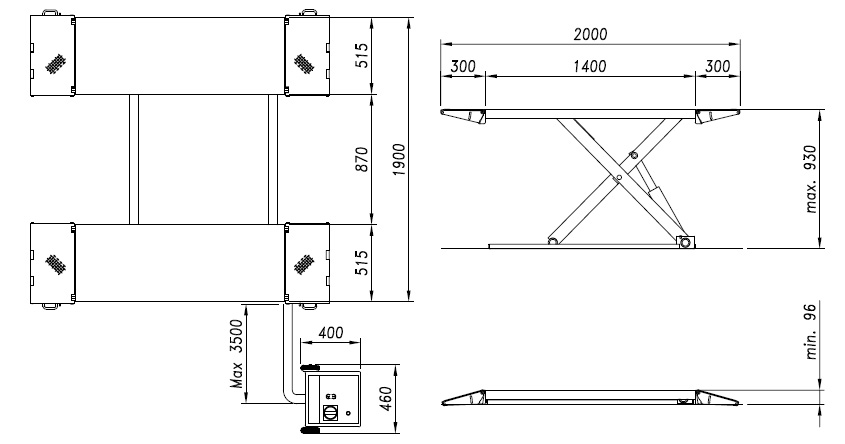

zoom TECHNICAL DRAW: 1537E

1537E
