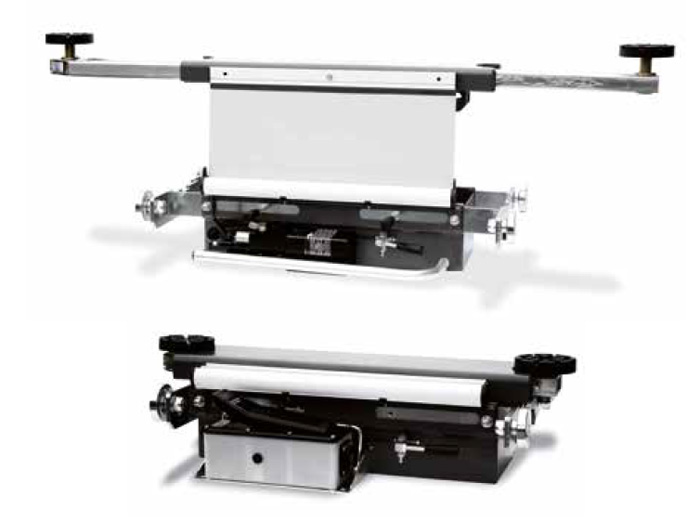

Hydraulic jacking beam: 1542B - 1542BA



OPTIONAL

  • Support kit for jacking beam
  • Lifting pad extensions:
    - 60 mm V1542.1
    - 100 mm V1542.6


Technical data 1542B - 1542BA
Capacity 2.000 kg
Lifting height 300 mm
Min extension (arms retracted) 935 mm
Estensione max. (bracci aper ti) 1.620 mm
Gauge vedere dettagli schemi
Weight 105 kg

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

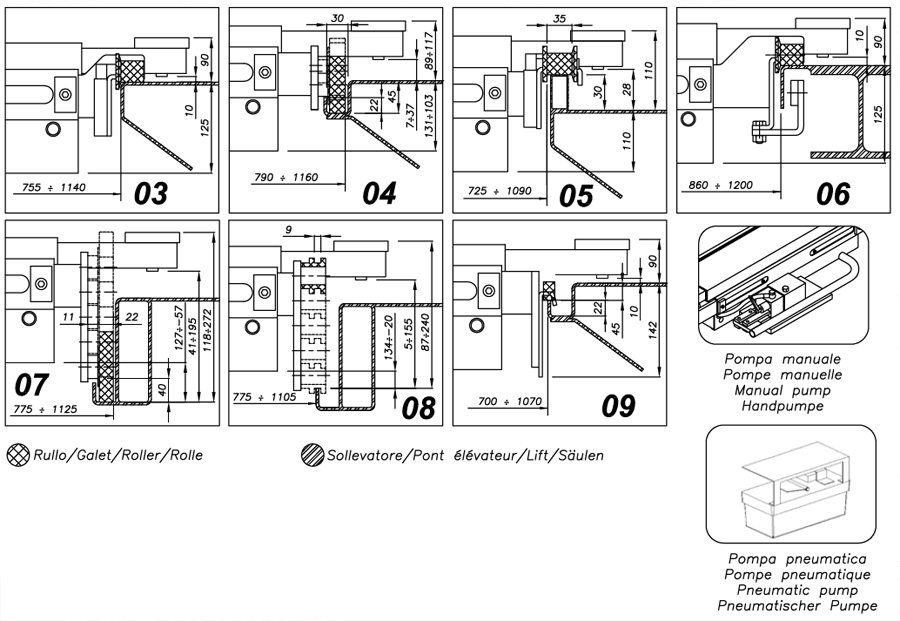

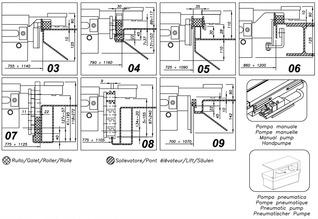

zoom TECHNICAL DRAW: Available versions

Available versions

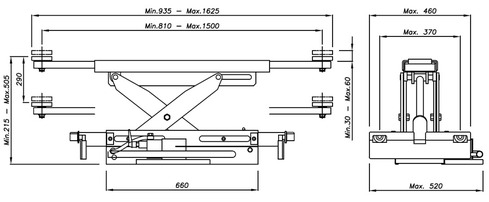

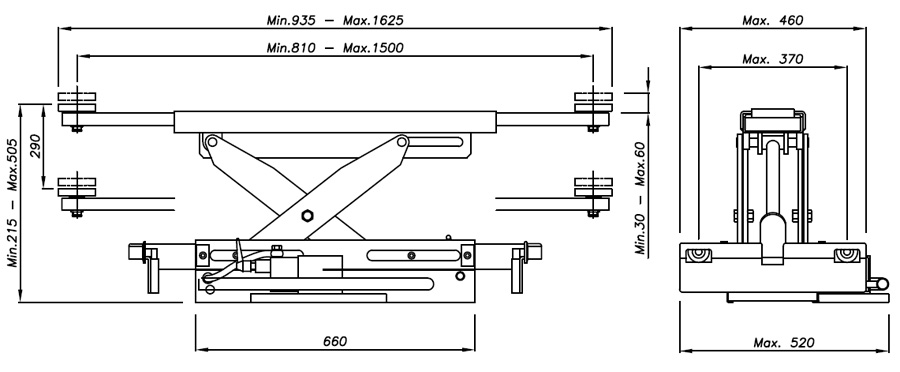

zoom TECHNICAL DRAW: 1542B - 1542BA

1542B - 1542BA
