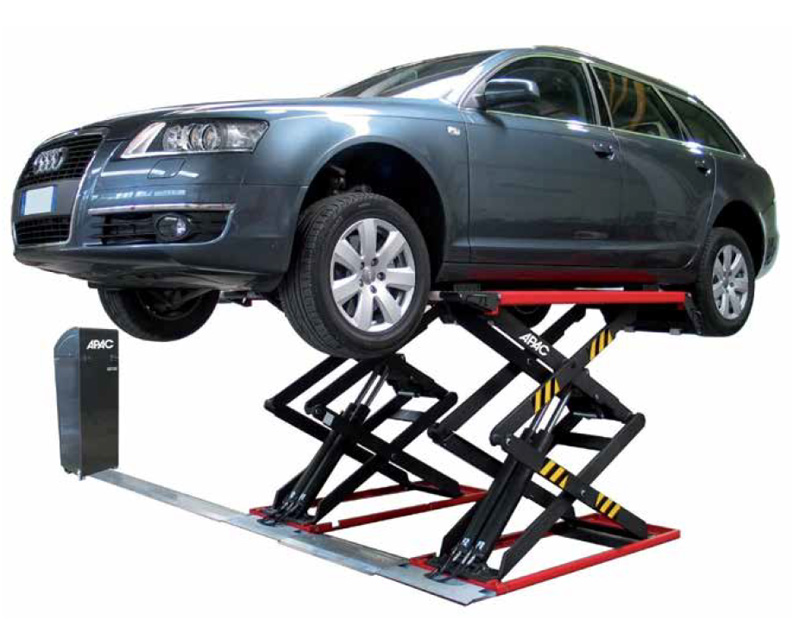

Scissor lifts: 1532LP - 1532LP35


  • Easy to handle drive-on and drive-off ramps
  • Hydraulic synchronization of platforms
  • Overload safety-valve
  • Safety-valve in case of sudden loss of pressure
  • Automatic lowering control
  • “Dead man” controls 24V
  • Set of 4 rubber pads
  • ‘Buzzer’ on last portion of descent

OPTIONAL

  • Hose extensions 2 m
  • Single phase version
  • Recess frame
  • Kit of embedded run-on and run-off skids
  • Auxiliary ramps for lowered cars
  • Crosspieces for special vehicles


Technical data 1532LP 1532LP35
Operation Elettroidraulico Elettroidraulico
Capacity 3.200 kg 3.500 kg
Weight 730 kg 750 kg
Lifting/descent 35/40 s 35/40 s
Lifting height 1945 mm 1945 mm
Motore 2,2 kW - 230-400 V/50 Hz 3 ph 2,2 kW - 230-400 V/50 Hz 3 ph

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

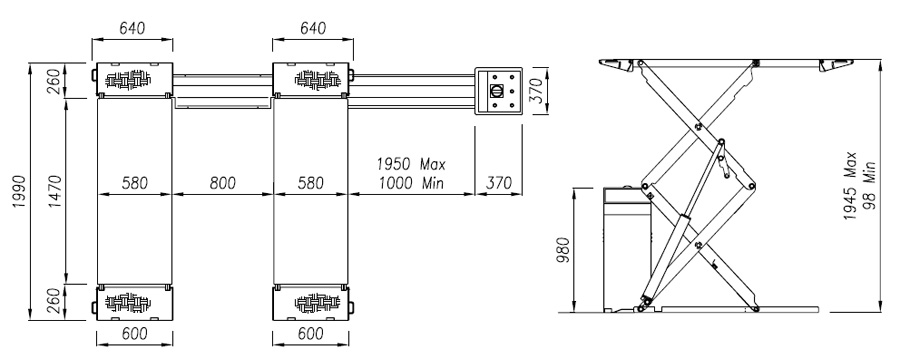

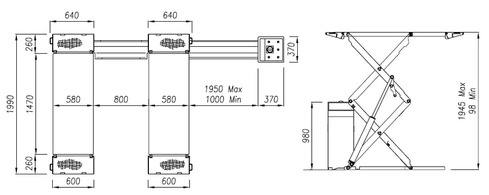

zoom TECHNICAL DRAW: 1532LP - 1532LP35

1532LP - 1532LP35
