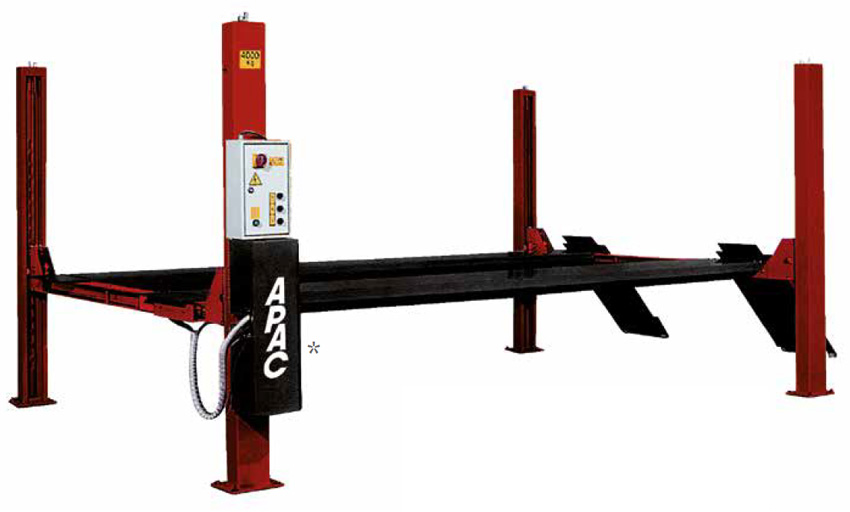

4 post-lifts: 1524


  • High lifting and descent speed
  • Overload safety valve
  • Descent control valve
  • "Buzzer" on last portion of descent
  • Pipe burst safety valve
  • 24 V, low tension dead man controls
  • Function: Electro-hydraulic

OPTIONAL

  • * U2350116 Cover for control unit

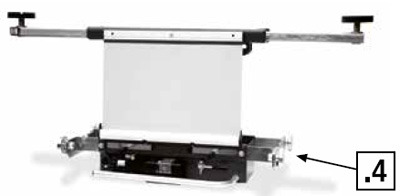

  • Hydraulic jacking beam (see relevant data sheet)
  • Single-phase motor
  • Illumination kit
  • Cover for control unit
  • Available with specific M.O.T. norms upon request


Technical data 1524
Capacity 4.000 kg
Weight 980 kg
Lifting/descent 30 s
Lifting height 1830 mm
Motore 3,0 kW - 3 ph 230
400V/50 Hz

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

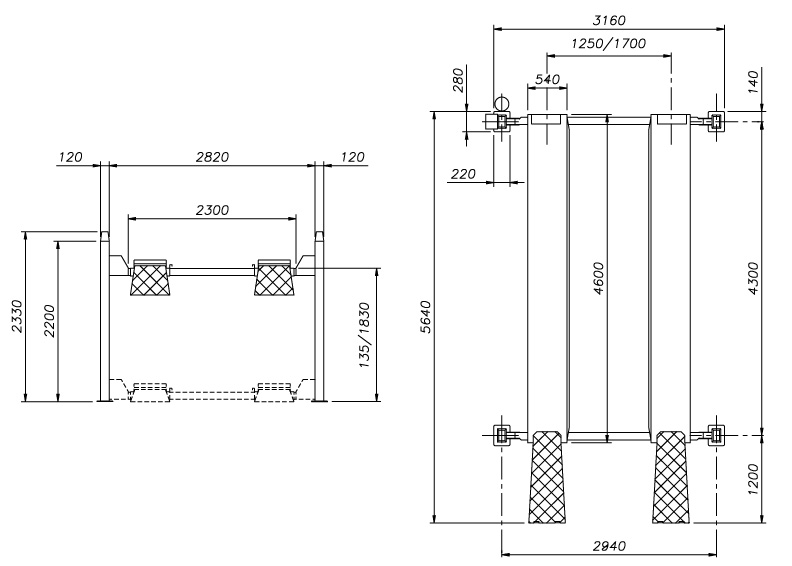

zoom TECHNICAL DRAW: 1524

1524
