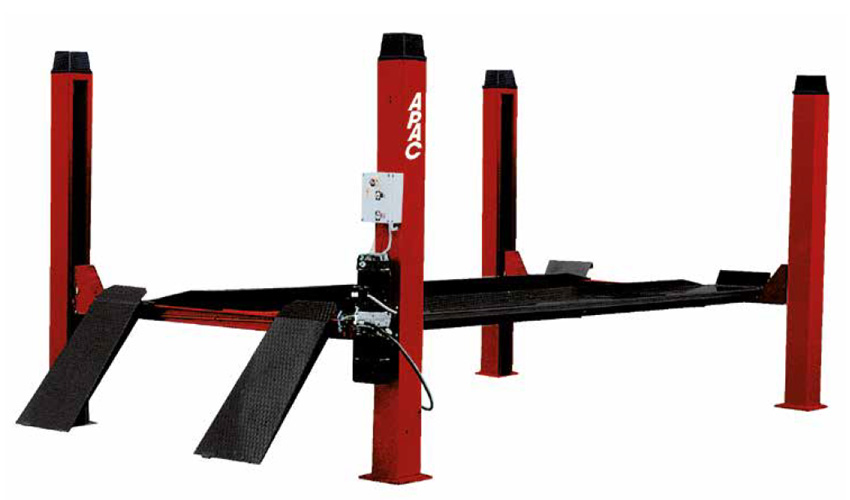

4 post-lifts: 1521


  • Overload safety valve
  • Descent control valve
  • "Buzzer" on last portion of descent
  • Pipe burst safety valve
  • 24 V, low tension dead man controls
  • Automatic release of safety locking devices
  • Operation: Electro-hydraulic

OPTIONAL

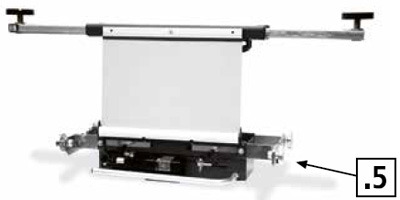

  • Hydraulic jacking beam (see relevant data sheet)
  • Single-phase motor
  • Illumination kit
  • Cover for control unit


Technical data 1521
Portata t 3.500 kg
Weight 830 kg
Lifting/descent 50/45 s
Lifting height 1750 mm
Motore 2,2 kW - 3 ph 230
400V/50 Hz

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

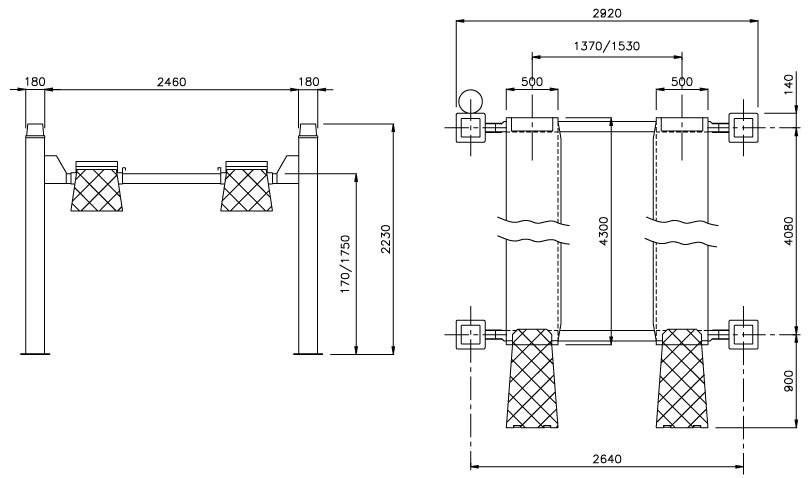

zoom TECHNICAL DRAW: 1521

1521
