New oil: Wall kit

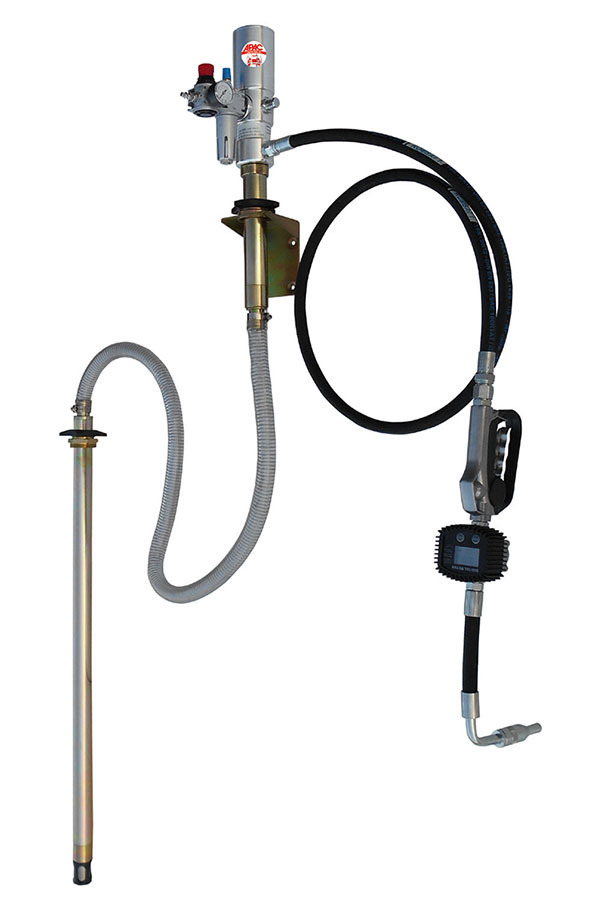

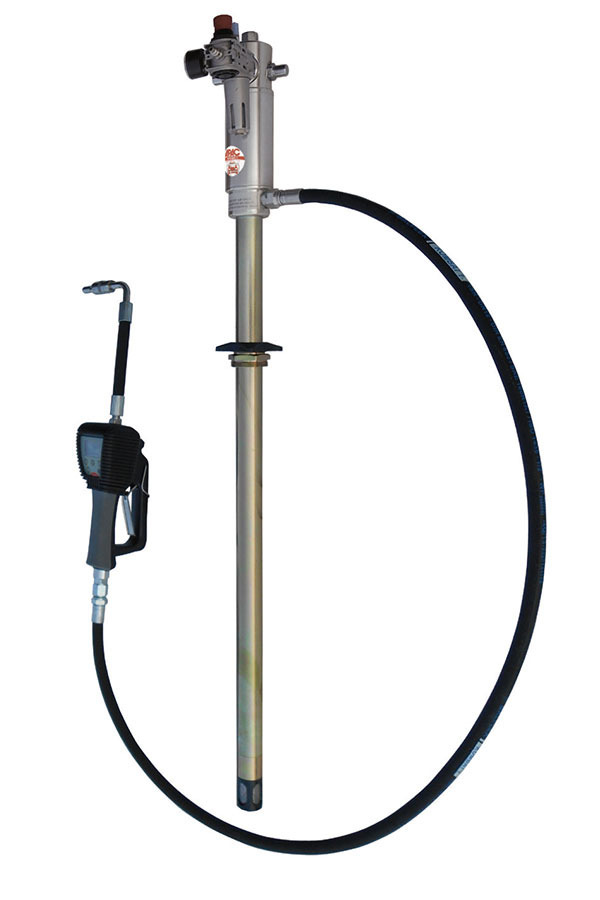

TECHNICAL DATA	1740MA	1740.M	1741M	1740A	1740	1741	1740.P	1741.P
Compression ratio	3:1	3:1	5:1	3:1	3:1	5:1	3:1	5:1
Pneumatic pumps	1772	1772	1778.B	1776	1776	1779	1776	1779
Oil valve	1768.A	1767D	1767D	1768.A	1767D	1767D	1767D	1767D
Distribution hose	(4 m) 1769.4	(4 m) 1769.4	(4 m) 1769.4	(4 m) 1769.4	(4 m) 1769.4	(4 m) 1769.4	(4 m) 1769.4	(4 m) 1769.4
Suitable for drums	180/220 kg	180/220 kg	180/220 kg	180/220 kg	180/220 kg	180/220 kg	180/220 kg	180/220 kg
Suction probe complete	(1,5 m + 1 m) 1774.2	(1,5 m + 1 m) 1774.2	(1,5 m + 1 m) 1774.2	-	-	-	-	-
Air lubricator and pressure regulator	1771.2	1771.2	1771.2	1771.2	1771.2	1771.2	1771.2	1771.2
Gun holder	1774.1	1774.1	1774.1	-	-	-	-	-
Weight	12 kg	12 kg	12 kg	11 kg	11 kg	11 kg	11 kg	11 kg

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.

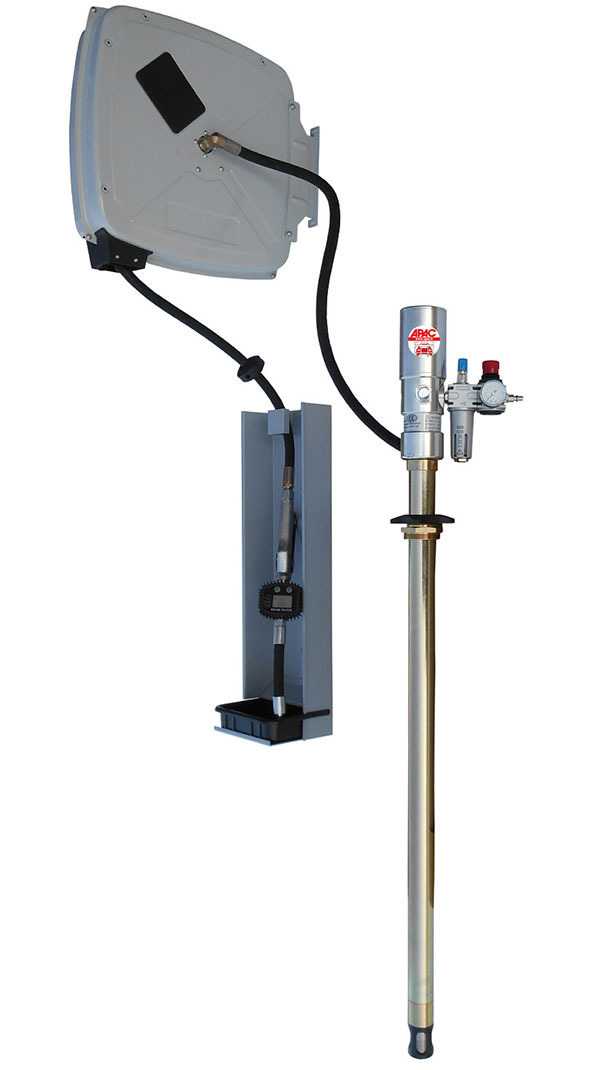

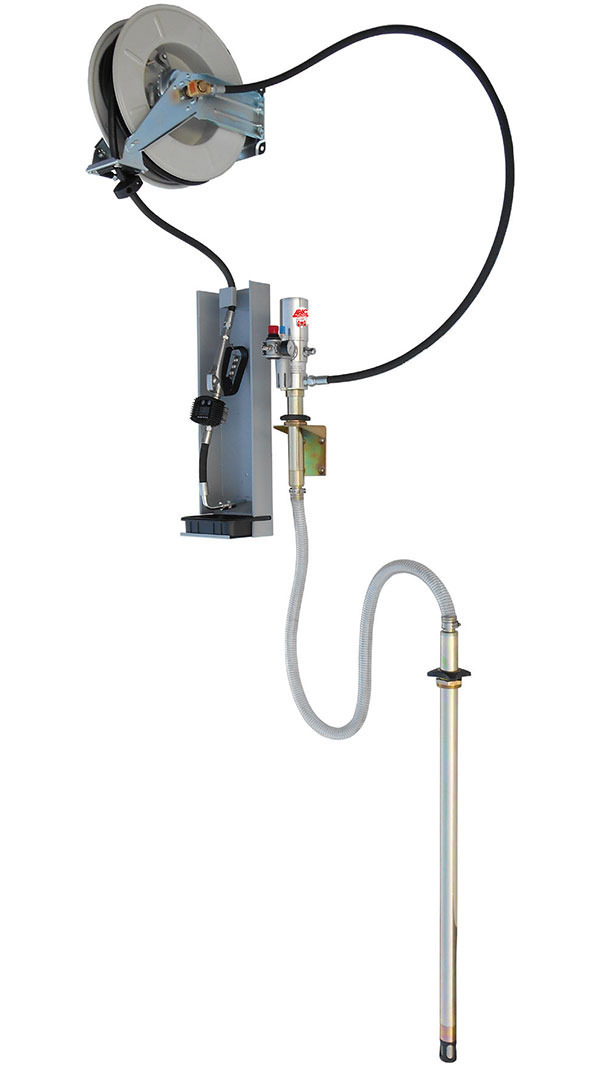

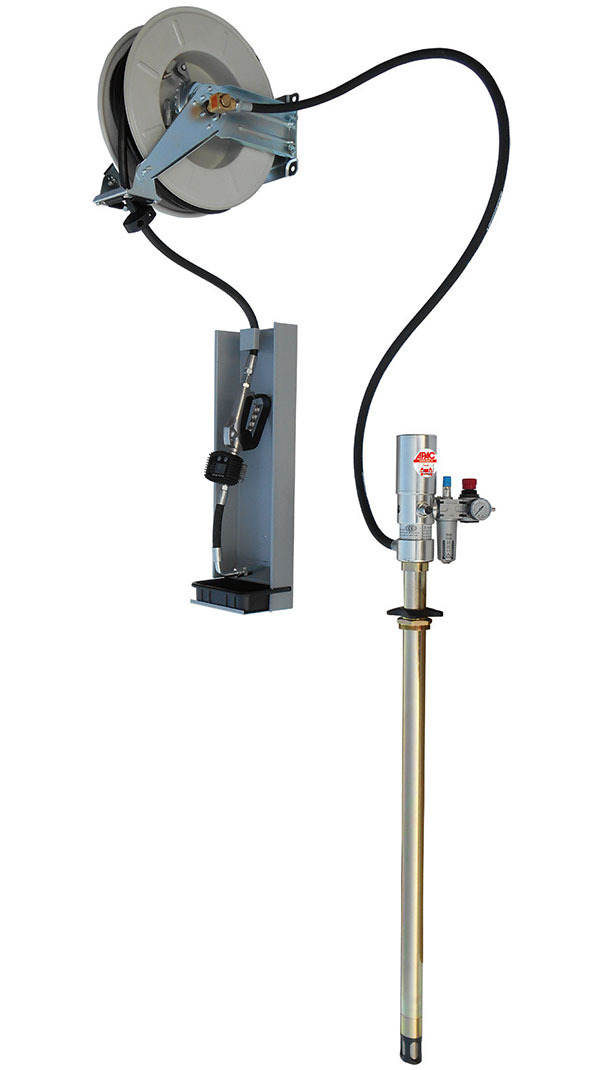

TECHNICAL DATA	1742S	1743S	1742SB	1744S	1745S	1742SA
Compression ratio	3:1	5:1	3:1	3:1	5:1	3:1
Pneumatic pumps	1776	1779	1776	1772	1778.B	1776
Oil valve	1767D	1767D	1767D	1767D	1767D	1767D
Hose reel	(15 m-1/2") 1732.O	1732.O 15m	(15 m-1/2") 1732.OC	1732.O 15m	1732.O 15m	1732.QC 9m
Connection hose	1769.2	1769.2	1769.2	1769.2	1769.2	1769.2
Suitable for drums	180/220 kg	180/220 kg	180/220 kg	180/220 kg	180/220 kg	180/220 kg
Suction probe complete	-	-	-	(1,5 m + 1 m) 1774.2	(1,5 m + 1 m) 1774.2	-
Gun holder	1767.1	1767.1	1767.1	1767.1	1767.1	1767.1
Air lubricator and pressure regulator	1771.2B	1771.2B	1771.2B	1771.2B	1771.2B	1771.2B
Weight	35 kg	35 kg	31 kg	36 kg	36 kg	31 kg

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
