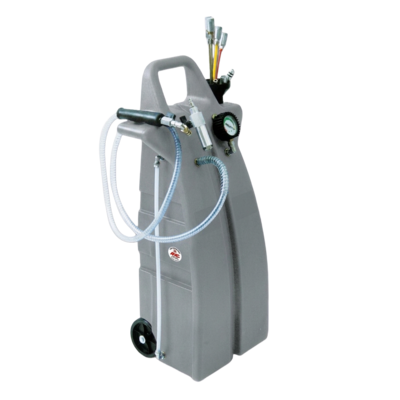

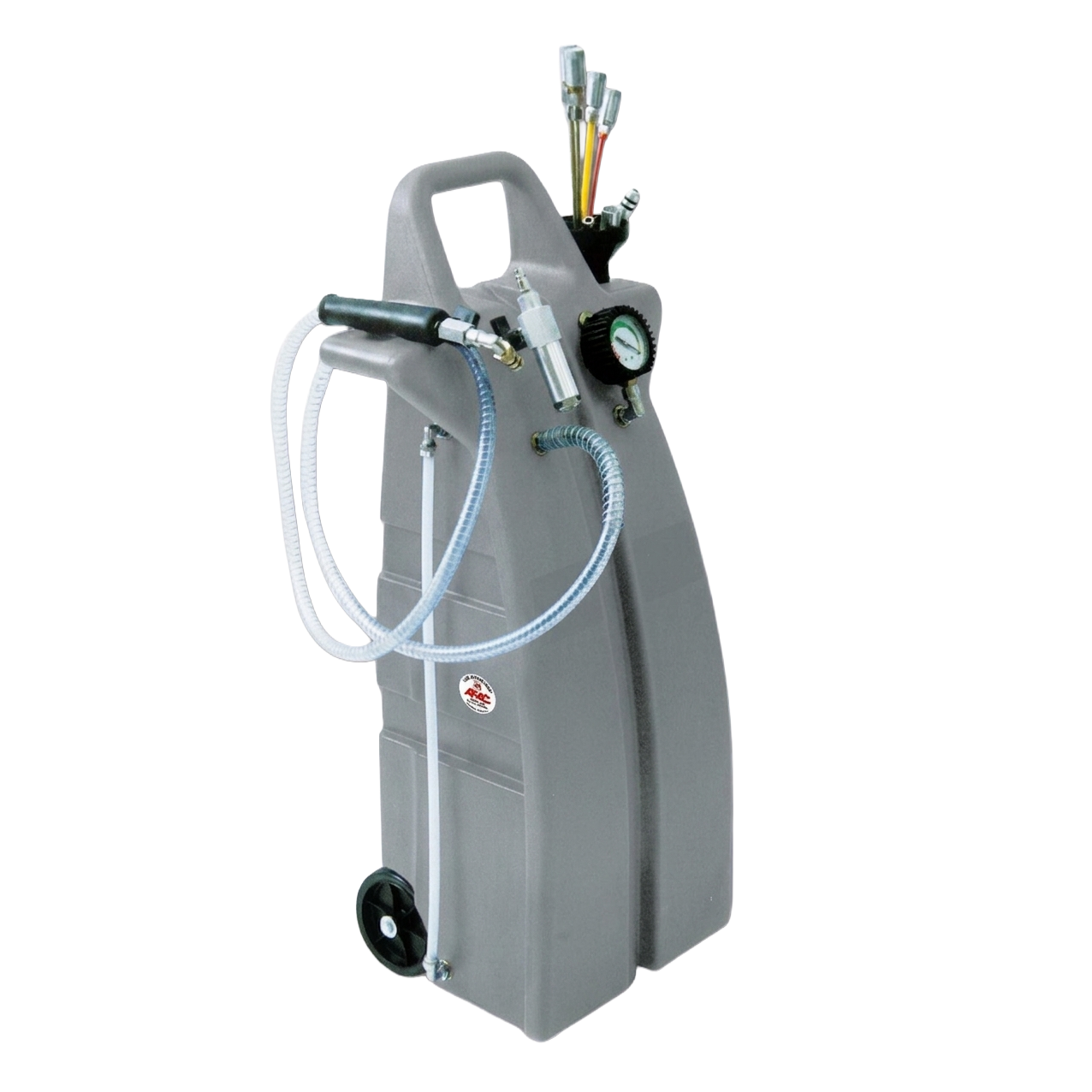

Spent oil: Oil drainers - Premium range

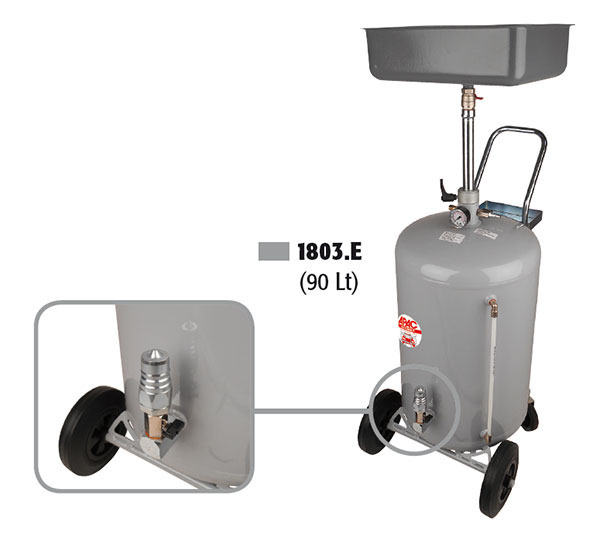

TECHNICAL DATA	1803	1804	1830	1831	1832	1833	1836	1837	1839	1840
A (mm )	525	570	330	490	540	540	330	490	540	540
B (mm)	610	620	395	630	630	630	395	630	630	630
C (mm )	1045	1200	790	920	1260	1030	1250	1380	1030	1260
C1 (mm )	590	590	-	-	590	590	-	-	590	590
Tray	12 l	12 l	-	-	12 l	12 l	-	-	12 l	12 l
Capacity	80 l	100 l	24 l	80 l	100 l	80 l	24 l	80 l	80 l	100 l
Weight	35,7 kg	35,7 kg	19,9 kg	33,2 kg	43,7 kg	38,2 kg	32 kg	45,5 kg	51 kg	60 kg

The manufacturing Company reserves the right to make modifications to its machines at any time without notice.
